FAAC 413 230V in Dubai

Supply, installation, repair and maintenance in UAE

FAAC 413 230V

FAAC Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

FAAC 413 230V

FAAC 413 Swing Gate Motor in UAE.

• FAAC 413 230V Electromechanical operator.
• Max width single leaf 1,8 – 2,5 m.
• Off-axis” thrust operator.
• Opening and closing mechanical stops included.
• Horizontal exit for cables to allow near-to-ground installation (low installation).

Dimensions and technical specifications:

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single-phase
• Max. power: 250 W
• Max expressed force: 2000 N (*)
• Rod max speed: 16 mm/s (*)
• Rod travel: 300 mm (350 mm without mechanical stops)
• Max. leaf opening angle: 110°
• Operating ambient temperature : -20°C ÷ + 55°C
• Thermal protection: 140°C
• Protection class: IP54
• Weight: 7.8 Kg
• Use frequency : S3 – 30%
• Max. leaf width: 1,8 m (2,5 with electric lock)
• Mounting brackets: Rear attachment to be welded/screwed
• Dimensions (LxDxH) : 777 x 101 x 152 mm.

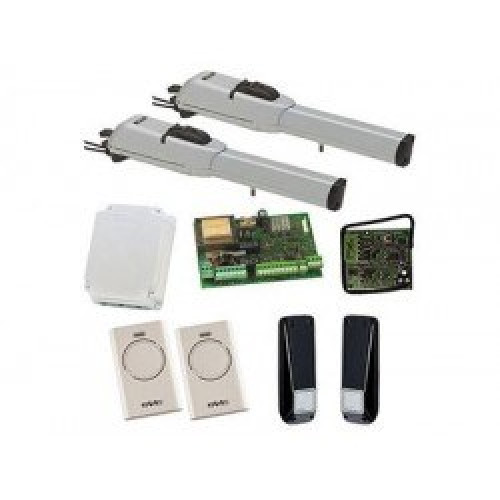

FAAC 413 Kit Includes:

• 2 x FAAC 413 Swing Gate Motor.
• 1 x XLED flashing light.
• 1 x Lock with key.
• 1 x E045S control unit.
• 1 x Enclosure mod. E for electronic control units.
• 1 x XF 433 MHz receiver.
• 1 x Pair of photocells XP 20 BD.
• 1 x 2 channels transmitter XT2 433 SLH LR.
• 1 x Push button.
