FAAC 741 in Dubai

Supply, installation, repair and maintenance in UAE

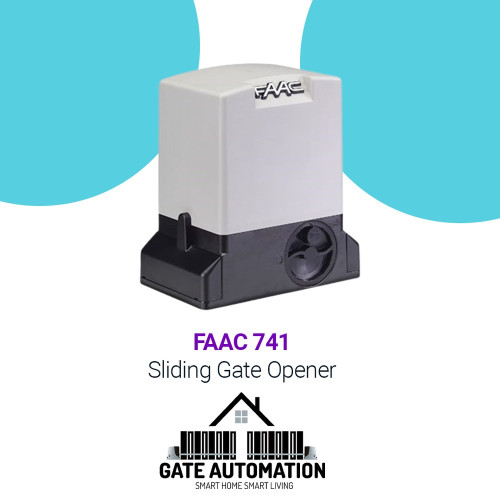

FAAC 741

FAAC Sliding Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

FAAC 741 900 KG

FAAC 741 900 Kg Sliding Gate Motor in Dubai UAE.

• 741 230V Gearmotor.
• Max. leaf weight 900 Kg.
• Max speed 12 m/min.
• Use frequency 40%.
• Easy programming thanks to the display and the prewired control unit
• Magnetic limit switch.
• Integrated encoder with reverse function upon obstacle detection and specific management in opening and slow down.

Dimensions and technical specifications:

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single-phase
• Max. power: 500 W
• Max. torque: 24 Nm (*)
• Max expressed force: 650 N (*)
• Reduction ratio: 1:25
• Max. leaf width: 15 m
• Leaf speed: 12 m/min :
• Speed adjustment and motor control: No
• Limit switch: Magnetic
• Pinion : Z16 module 4
• Encoder: Optical encoder
• Force adjustment: Via electronic control board
• Operating ambient temperature : -20°C ÷ +55°C
• Thermal protection: 140°C
• Protection class: IP44
• Weight: 11 kg
• Dimensions (LxDxH) : 295 x 181 x 320 mm
• Max. leaf weight: 900 Kg
• Use frequency : S3 – 40%
• Electronic equipment
• 740D incorporated.

Faac 741 Kit Includes:

• 1 x 741 E Z16 Gearmotor with electronic control unit and integrated encoders.
• 4 x Nylon Rack 1 meter.
• 1 x Plug-in receiver 1 channel RP 433 SLH.
• 1 x XLED flashing light.
• 1 x Lock with key.
• 1 x Pair of photocells XP 20D.
• 1 x 2 channels transmitter XT2 433 SLH LR.
• 1 x Push button.
