VDS SIMPLY in Dubai

Supply, installation, repair and maintenance in UAE

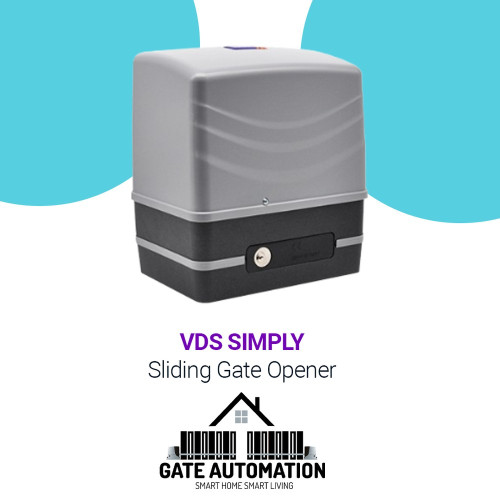

VDS SIMPLY

VDS Sliding Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

VDS SIMPLY 600 KG

VDS SIMPLY 600 Kg Sliding Gate Motor in Dubai UAE.

• Leaf weight 600 kg
• Structure in die-cast aluminum, powder-painted
• Steel and cast gears obtained from solid
• Lithium grease lubrication of mechanical parts against corrosion, oxidation, and rust
• Very quiet operation
• High-performance electric motor
• Release devise with customized key
• Available with and without encoder
• Electronic torque control
• Pre-wired and easy programming software
• Available with and without a control unit
• Control unit box with air-stop seal against moisture and insects
• Anti-squashing system and slowing down function (en 12453)
• Optional kit battery backup
• Power supply 230Vac – 24Vcc.

Performance requirements:

• Operating cycle: semi-intensive 230Vac, intensive 24Vcc
• Frequency of use: 50% (230Vac) – 80% (24Vcc)
• Speed: 10 mt./min. (230 Vac) – 12 mt./min. (24 Vcc).

Technical Datasheet:

• Power supply: 230 Vac
• Leaf weight: 600 KG
• Pinion: M4-Z12
• Engine RPM: 1400 RPM
• Average absorption: 1,3 A
• Absorbed power: 250 W
• Condenser: 12,5 UF
• Operator weight: 8 KG
• Noise level :
• Environmental conditions : -20/+55° C
• Protection degree: IP44
