TELCOMA STONE 3 in Dubai

Supply, installation, repair and maintenance in UAE

TELCOMA STONE 3

TELCOMA Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

TELCOMA STONE 3

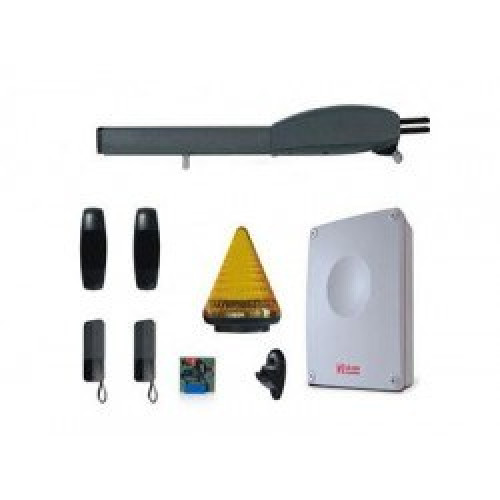

STONE 3 - ELECTROMECHANICAL PISTON 230V FOR SWING GATES
Electromechanical actuator ideal for swing gates up to 3 meters. Equipped with encoder, release mechanism with coded key, and oscillating rear bracket.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable with a sturdy aluminum body treated against oxidation and an oscillating rear bracket that absorbs the possible sagging of the leaves.
STONE3
230 V irreversible electromechanical piston.
For leaves up to 3 m.
STONE3REV
230 V reversible electromechanical piston.
For leaves up to 3 m.
TECHNICAL SPECIFICATIONS STONE3 STONE3REV
Motor power supply                                                   230 V
Max. motor current                                                   1,6 A 1,4 A
Motor power                                                             370 VA 330 VA
Thrust                                                                      1600 N 1500N
Max. gate weight                                                       250 Kg
Max opening                                                             120°
Rod stroke                                                               300 mm 500 mm
Actuator speed                                                         19 mm/s 25mm/s
Work cycles                                                             30 % intensive
Capacitor                                                                10 μF
Encoder                                                                  YES
Mechanical limit switches (foreseen)                            AP
Grease lubricant                                                      TS10
