Sommer Twist 200 EL in Dubai
Product enquiries across all seven UAE emirates
BrandSOMMER
ModelSommer Twist 200 EL
AvailabilityAvailable for Quotation
ServiceSite Visit Available
Quotation
Price on Request
Final price depends on supply only / installation, gate size, accessories and site condition.
Request Quotation
Send this product on WhatsApp for current availability, supply price, installation estimate, repair, remote programming or compatibility confirmation.
WhatsApp Quote Call Now
Supply & installation available
Repair and maintenance support
UAE service enquiries
Supply, installation, repair and maintenance in UAE

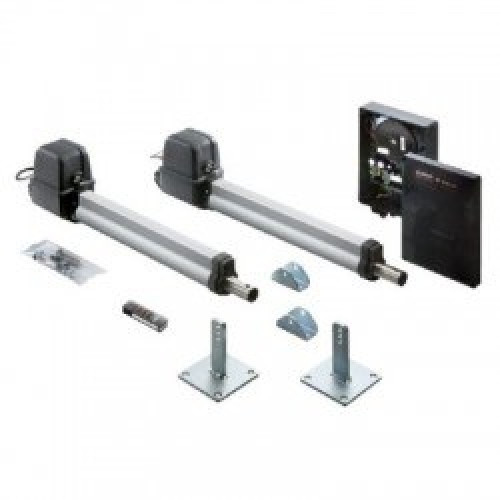

Sommer Twist 200 EL
Sommer Twist 200 EL Swing Gate Motor kit up to 300 kg in Dubai, Sharjah, Abu Dhabi, and all over UAE.
- twist 200 E set 2-leaf
- twist 200 E set 2-leaf 868,95MHz.
- SOMMER version anthracite power plugs Schuko incl. 1x 4019V000.
- Article No. S11521-00001
- two twist 200 E swing gate operator (can be used universally for DIN left and DIN right)
- Post and gate leaf fitting
- Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
- SOMup4 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
- Slot for Memo memory extension (450 radio commands)
- Pearl Vibe 4-command handheld transmitter (# 4019V000)
- Transmitters can be programmed and deleted and information on the radio receiver.
Technical Data:
- Weight (kg): 11.7504
- EAN: 4015862918321
- Goods number: 8479 89 97
- Radiofrequency 1 : 868,950 MHz SOMloq2
- Number of radio memory positions: 40
- Somloq compatible : nein
- SOMloq2 compatible: ja
- IP code: IP 44
- Protection class: I
- Standby: 2,90 W
- Temperature min. : - 30 °C
- Temperature max. : 70 °C
- max. pulling force: 2000 N
- Rated pulling force: 660 N
- Operating time: ED 15% S3
- max. gate weight: 300 kg
- max. gate opening angle: 120 °
- max. gate inclination: 10,0 %
What’s Included
- 2 x twist 200 E swing gate operator.
- 1 x Control unit in housing.
- 1 x Post and hinged double door fittings.
- 1 x Radio receiver SOMup4 FM 868.95 MHz.
- 2 x 4-command handheld transmitter Pearl Vibe.
- 1 x Blinker light.
- 2 x Fixing Bracket.
Sommer Twist 200 EL in Dubai, Sharjah & Ajman
GateAutomation.ae supplies and supports Sommer Twist 200 EL for swing gate motor applications in villas, warehouses, buildings, parking areas and commercial facilities across the UAE.
- Supply, installation, repair and maintenance support available
- Site visit and quotation available for Dubai, Sharjah and Ajman
- Support for gate motors, parking barriers, remotes, sensors, access control, CCTV and intercom systems
Service areas: Dubai, Sharjah, Ajman, Abu Dhabi and other UAE locations. Contact us on WhatsApp for price and availability.
Supply, Installation & Maintenance Support in UAE
Request product availability and a quotation for Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Supply, installation and maintenance requirements are reviewed against the product model, existing system and site conditions. Share photographs and model details before selecting replacement equipment.
Email a product enquiry | Security, ELV & IT services | Repair, maintenance & AMC
Frequently Asked Questions
Can I request a quotation for Sommer Twist 200 EL in Dubai?
Yes. Send your emirate, site location and model details to request supply pricing or an installation assessment. Availability, compatibility and service scope are confirmed in the quotation.
Is the final price fixed on the website?
No. Final price depends on supply only or installation, system requirements, accessories, cabling and site conditions.
Can I send photos before site visit?
Yes. Send the product name, equipment photographs and site requirements by WhatsApp or email so our team can review compatibility.
