SOMFY IXENGO L 24V RTS in Dubai

Swing Gate Motor Supply, Installation & Maintenance in UAE

SOMFY IXENGO L 24V RTS

SOMFY IXENGO L 24V RTS

SOMFY IXENGO L 24V Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

• SOMFY 1216555 IXENGO L 24V RTS
• Gate weight: 400kg, length: to 4m
• Opening time up to 90°: up to 34s
• Power supply/motor power supply: 230V/24V
• The actuator is optimized for most installations.
• The drive was designed for use with narrow posts (width at least 80 mm).
• possibility to set operating parameters
• easy and safe disengagement with individual key
• soft closing of the gate
• adjustable torque value
• adapted to the small space behind the wing
• electronic limit switches

Specification:

• Mains power: 230V - 50Hz
• Power: 800 W (with 500 W lighting)
• 7-button programming interface: 3-character LCD
• TRS radio frequency: 433.42MHz
• Number of storable remote control devices: max. 40 channels
• Degree of protection: IP 44
• Working conditions: -20 ° C to + 60 ° C

Technical Data of the Actuator:

• main power: 220-230 V - 50 Hz
• electric motor supply: 24 VDC
• accessory power supply: 24 V DC / 1200 mA
• maximum power consumption: 40 W
• minimum distance behind the wing: 160 mm
• maximum hinge offset: 183mm
• power supply for external lighting: 500 W max. halogen
• drive force: 2000 N
• working range: 465 mm
• open time to 90 °: 10 to 34 seconds (depending on installation)
• Number of storable remote control devices: max. 40 channels
• working temperature: -20 ° C to +60 ° C
• security class: IP 44

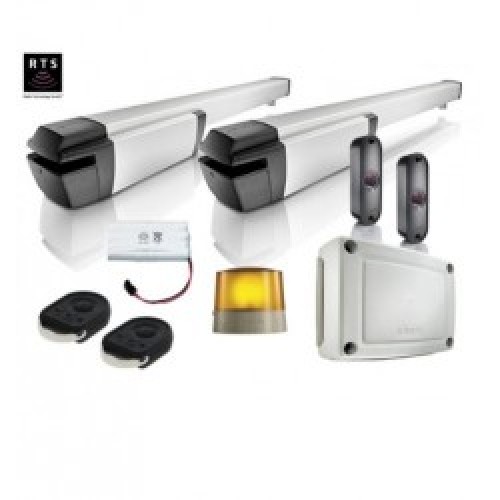

Somfy Ixengo L 24v Package Includes:

• 2 x Somfy Actuator Ixengo L 24V
• 1 x 3S Ixengo RTS switch
• 2 x Keygo RTS 4-channel remote control - 2 pcs
• 1 x Master Pro 24V lamp with built-in antenna
• 1 x set of Master Pro photocells - Bitech
• 1 x Push Button.
