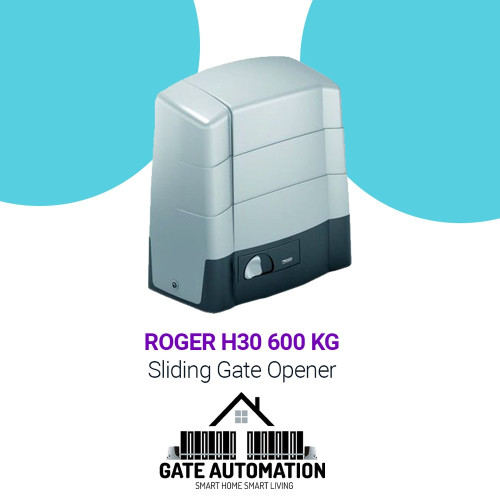

ROGER H30 600 KG

ROGER Sliding Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

ROGER H30 600 KG

ROGER H30/645 Sliding Gate Motor in UAE.

• KIT H30/645
• Gate Weight: 600 Kg.
• Made in Italy
• KIT Electromechanical motor 230V AC
• Irreversible ideal for sliding gates up to 600 kg,
• with built-in control unit H70,
• optical encoder and mechanical limit switch.

Technical Features:

• Max gate weight: 600 kg
• Power line supply: 230V AC - 50Hz
• Motor power supply: 230V AC
• Power rating: 240W
• Frequency of use: 50%
• Thrust: 300N
• Operating temperature:  -20+55°C
• Protection level: IP44
• Reductor Type: Irreversible
• Manoeuvre speed : 9.5 m/min (0.16 m/s)
• Motor thermal protection: 150°C
• Incorporated condenser: 12,5 µF
• Limit switch: Mechanical
• Onboard control unit: H70/104AC
• Encoder:  Optical
• Type exit gear: Z15/mod 4
• Maximum dimension product in mm (L x W x H) : 315 x 165,8 x 329
• Product weight packed (Kg): 12,1
• Number items per pallet: 44

ROGER H30 Kit Contains:

• 1 x ROGER H30 600 Kg Sliding Gate Motor.
• 2 x ROGER E80 Remote Control.
• 1 x ROGER R90 Photocell Sensors.
• 1 x ROGER Blinker Light.
• 4 x Nylon Rack 1m.
• 1 x Push button.
• 1 x Fixing Plate
