MARANTEC COMFORT 360 in Dubai

Supply, installation, repair and maintenance in UAE

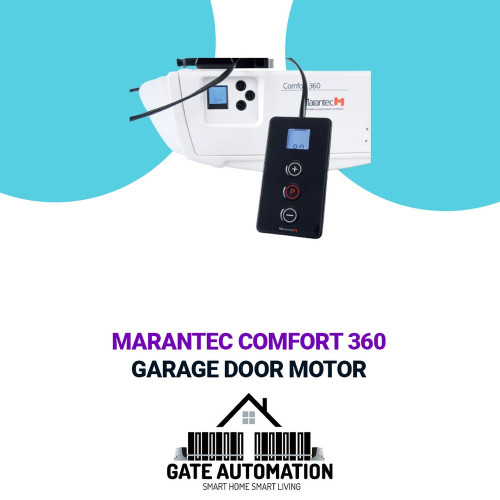

MARANTEC COMFORT 360

MARANTEC COMFORT 360

MARANTEC COMFORT 360 Garage Door Operators in Dubai, Sharjah, Abudhabi, and all over UAE.

• Comfort 360 Set for garage doors up to 110 kg: 24 V-DC motor, 650 N, 22 cm/s.
• 183504
• Comfort 300 series:
• Our Comfort 300 series features the patented blueline technology,
• which reduces energy consumption to almost zero whenever the opener is not in operation.
• With a door travel speed of up to 235 mm/sec. both when opening and closing,
• the openers are also particularly fast thanks to the speed function.
• With a maximum LED light output equivalent to a 160 W incandescent bulb,
• it is extremely bright too – ensuring optimal convenience and safety.

MARANTEC COMFORT 360 Kit Includes:

• 1 x Motor unit with integrated control
• 1 x Digital 921 Module receiver, 868 MHz bi. linked
• 2 x Digital 382 handheld transmitter 4-channel, 868 MHz bi.linked
• 1 x Digital 572 Micro hand-held transmitter 2-channel, 868 MHz bi.linked
• 1 x Universal installation set for up-and-over and sectional doors.
• 1 x Power cable with Euro plug type C, 1,500 mm.
• 1 x Pair of Photocells.

Technical Data:

• Tensile and compressive force (max.) : [N] 650.
• Running speed (max.) [cm/s]: 22.
• Cycles per hour (max.): 2.
• Cycles per day (max.): 20.
• Operating voltage [V]: 230 V/1~.
• Illuminant : 2x10-LED-Modul.

Scope of Operation:

• Width overhead doors (max.) [m]: 3,5.
• Width of tipping and canopy gates (max.) [m]: 3,5.
• Height of tilt and canopy gates (max.) [m]: 2,25.
• Width of single-wall sectional doors (max.) [m]: 5.
• Width of double-walled sectional doors (max.) [m] : 3.
• Gate weight (max.) [kg]: 110.
