FAAC E045S in Dubai

Supply, installation, repair and maintenance in UAE

FAAC E045S

FAAC E045S

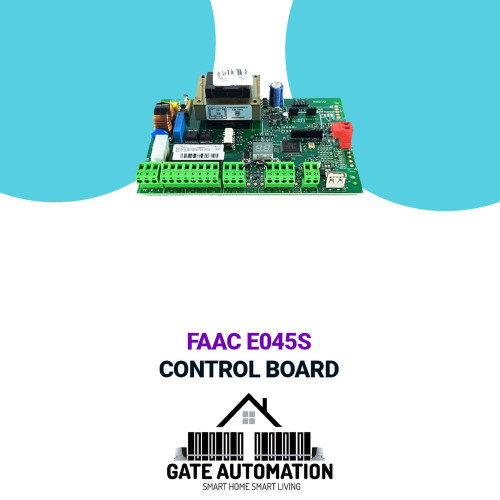

FAAC E045S Control Board for  Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

• E045S Electronic control unit.
• For 230V swing-leaf gate automation.
• The E045S electronic control unit can command one or two operators
• Thanks to the new 2easy and OMNIdec technologies it is compatible with the XF 433/XF 868
• quick insert module (connector set-up), with the external receivers and with XP 15B and XP 20B D photocells (“BUS” connection).
• The BUS XIB interface is provided for the connection of traditional photocells.

Basic programming:

• Operating logic: Semiautomatic, Automatic, Semi-automatic step-by-step,
• step-by-step Auto, Auto Security stepper, Semi-automatic B, C Deadman
• Pause time: Programmable (from 0 to 9 min 50 sec)
• Number of motors: Selectable
• Thrust power: Adjustable on 50 levels for each motor independently
• Encoder use: Selectable
• Leaf delay time in closing: Programmable (from 0 to 1 min 30 sec)
• BUS 2-Easy device registration: Selectable
• Motor Power: 1 and 2 (independently)
• Working time learning: Simple self-learning (max 4 min and 10 sec).
• Self-learning working and deceleration time of two leaves in one complete working cycle only.
• With SAFEcoder absolute encoder, the open/closed/deceleration positions are learned
• Advanced programming: Reversing stroke and ram stroke.
