Ezviz C3WN Outdoor Smart WiFi Camera in Dubai

Supply, installation, repair and maintenance in UAE

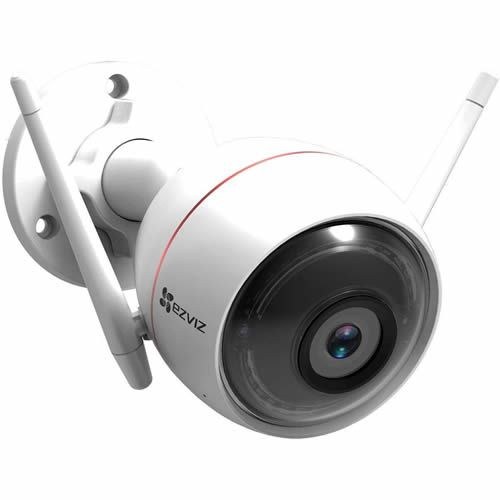

Ezviz C3WN Outdoor Smart WiFi Camera

Enhanced Connectivity

• Boasting wall-penetration and anti-interference capabilities, the dual-antenna C3WN stays online better. It’s well-equipped to maintain a steady and reliable long-range signal.

Hear What’s Happening

• With a built-in noise-canceling microphone,
• the C3WN allows you to hear what’s happening in high-quality audio. Use your smartphone to listen, wherever you might be.

Super Night Vision

• What is it like to have a night vision camera that can spot objects from as far as 30 meters (100 feet) away and clearly reproduce them in recorded video? Experience it with the C3WN, seeing in the dark by using powerful Infrared LED lights

For All Types of Weather

• The IP66 rating means that the C3WN is reliable and durable enough to brave any weather – sun, rain, or snow – relentlessly safeguarding what matters most.

Ezviz Specifications Model No. CS-CV310-A0-1C2WFR

Camera

• Image Sensor: 1/2.9” Progressive Scan CMOS
• Minimum Illumination : 0.02 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter: Self-adaptive shutter
• Lens : 2.8mm @F1.8, view angle: 95° (Horizontal), 110° (Diagonal) 4mm @F2.0, view angle: 81° (Horizontal), 94° (Diagonal) M12
• Lens Mount: M12
• Day & Night: IR-cut filter
• DNR: 3D DNR
• WDR: Digital WDR

Compression

• Video Compression : H.264
• H.264 Type: Main Profile
• Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate.


• Max. Resolution: 1920×1080
• Frame Rate : Max: 30fps; Self-Adaptive during network transmission

Interface

• Storage: MicroSD card slot (Max. 256 GB)
• Wired Network: RJ45 × 1 (10M/100M Adaptive Ethernet Port)

Network

• Smart Alarm: Motion detection
• Wi-Fi Pairing: AP Pairing
• Protocol: EZVIZ Cloud Proprietary Protocol
• Interface Protocol: EZVIZ Cloud Proprietary Protocol
• General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
• Max. Bitrate: 2Mbps

Wi-Fi

• Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range : 2.4GHz ~ 2.4835 GHz
• Channel Bandwidth: Support 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

General

• Power Supply: DC 12V/1A
• Power Consumption: Max. 6W
• IP Grade: IP66
• IR Range: Max. 30 meters (98.43ft)
• Product Dimensions : 72mm x 72mm x 150 mm (2.83 x 2.83 x 5.91”)
• Packaging Dimensions : 252mm x 110mm x 92mm (9.92 x 4.33 x 3.62”)
• Weight: 288g (0.63lb)

Requirements

• Operating Temp: -30 to 60°C (-22 to 140°F) Humidity: 95% or less (non-condensing)

Package Contents:

• One IP Camera
• 1.5-meter (5-foot) Power Adapter - Mounting Template
• Screw Kit
• Waterproof Kit
• Quick Start Guide
