BENINCA BILL 50 in Dubai

Supply, installation, repair and maintenance in UAE

BENINCA BILL 50

BENINCA Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

BENINCA BILL 50

Beninca Bill50m Swing Gate motor kit up to 4 meters in Dubai UAE.

• 230 Vac Up to 4 m per door leaf.
• Irreversible 230 Vac electromechanical geared motor.
• Neat design and size, particularly suited to forged iron gates.
• Easy and quick to install due to compact size and installation geometry.
• The worm is protected by a scraper ring and stainless steel stem.
• Suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents.
• Easy access release from above.
• Available in right or left version.
• Beninca Bill50m:
• BILL is the ideal motor gear to install for wrought-iron gates up to 4m.

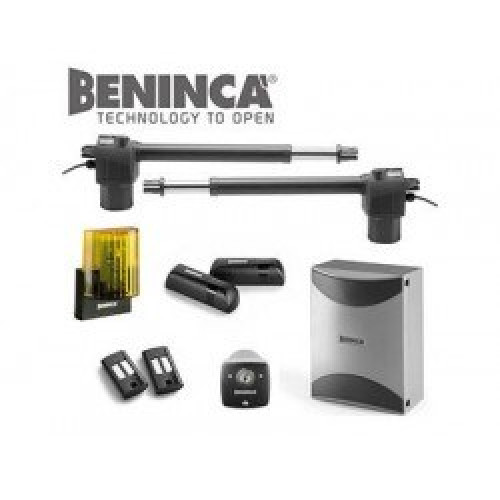

Beninca Bill50m contains:

• 2 x BILL50m 230 Vac operator.
• 1 x HEADY 230 Vac control unit.
• 1 x LAMPI.LED 230 Vac LED flashing light.
• 1 x PUPILLA.R Pair of fixed photocells PUPILLA.R.
• 2 x To go Remote control.
• 2 x Fixing Bracket.
• 1 x Exit Push Button.
• 2 x Manual release keys.

Technical Data:

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 1.1 A
• Maximum thrust: 2800 N
• Opening time: 21"
• Standard stroke: 500 mm
• Max stroke: 520 mm
• Duty cycle: 30%
• Protection level: IP54
• Built-in control unit: no
• Encoder: no
• Operating temperature : -20°C /+50°C
• Lubrication: GREASE
• Leaf max dimension: 4 m
• Weight: 6.9 kg
• Kit weight 16.2 kg.
