Sommer Twist 200 EL in Dubai

Swing Gate Motor Supply, Installation & Maintenance in UAE

Sommer Twist 200 EL

Sommer Twist 200 EL

Sommer Twist 200 EL Swing Gate Motor kit up to 300 kg in Dubai, Sharjah, Abudhabi, and all over UAE.

• twist 200 E set 2-leaf
• twist 200 E set 2-leaf 868,95MHz.
• SOMMER version anthracite power plugs Schuko incl. 1x 4019V000.
• Article No. S11521-00001
• two twist 200 E swing gate operator (can be used universally for DIN left and DIN right)
• Post and gate leaf fitting
• Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
• SOMup4 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
• Slot for Memo memory extension (450 radio commands)
• Pearl Vibe 4-command handheld transmitter (# 4019V000)
• Transmitters can be programmed and deleted and information on the radio receiver.

Technical Data:

• Weight (kg): 11.7504
• EAN: 4015862918321
• Goods number: 8479 89 97
• Radiofrequency 1 : 868,950 MHz SOMloq2
• Number of radio memory positions: 40
• Somloq compatible : nein
• SOMloq2 compatible: ja
• IP code: IP 44
• Protection class: I
• Standby: 2,90 W
• Temperature min. : - 30 °C
• Temperature max. : 70 °C
• max. pulling force: 2000 N
• Rated pulling force: 660 N
• Operating time: ED 15% S3
• max. gate weight: 300 kg
• max. gate opening angle: 120 °
• max. gate inclination: 10,0 %

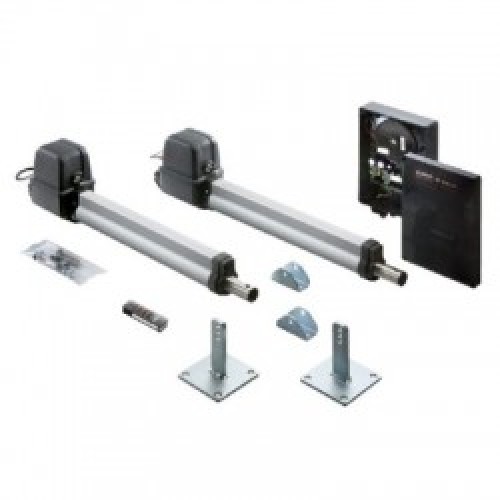

What’s Included

• 2 x twist 200 E swing gate operator.
• 1 x Control unit in housing.
• 1 x Post and hinged double door fittings.
• 1 x Radio receiver SOMup4 FM 868.95 MHz.
• 2 x 4-command handheld transmitter Pearl Vibe.
• 1 x Blinker light.
• 2 x Fixing Bracket.
