BFT PHOBOS AC A25 in Dubai

Swing Gate Motor Supply, Installation & Maintenance in UAE

BFT PHOBOS AC A25

BFT PHOBOS AC A25 400KG

BFT Phobos AC A25 Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

• Gate Weight: 400 Kg
• Gate Leaf: 2.5 meters long
• Made in Italy
• PHOBOS AC A25
• Product code P935098 00002
• Irreversible electromechanical operator 230 V for swing gates weighing up to 400 kg and 2,5 m long.

Technical Data Sheets:

• Cycle time: 14 s
• Interconnectivity: no
• Control unit : RIGEL 6. ALENA SW2
• Type of limit switch: work time
• Board power supply: 230 V
• Slowdown: Yes
• Motor voltage: 230 V
• Locking: Mechanical
• Power consumption: 210 W
• Release: Personal key
• Max. width of door/gate wing: 2.5 m
• Impact reaction: Electronic clutch
• Max. weight of door/gate wing: 400 kg
• Frequency of use: Semi-intensive
• Useful rod stroke: 350 mm
• Protection rating: IPX4
• Maximum angle: 120 °
• Environmental conditions: -20 ÷ 55 °C.

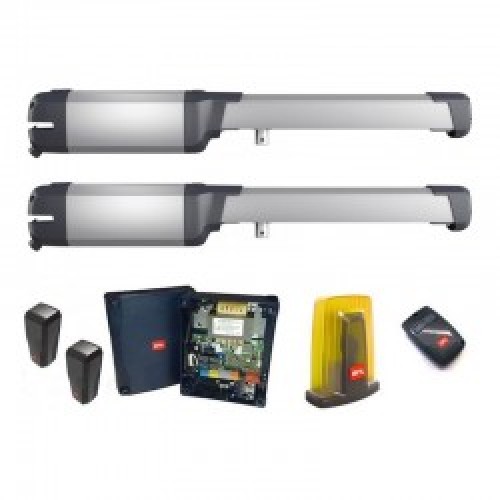

BFT PHOBOS AC A25 kit contains:

• 2 x PHOBOS BT A25 Swing Gate Motor 230 V.
• 1 x RIGEL 6 220-230V 50/60HZ Control Panel.
• 1 x Pair of photocells adjustable 180° horizontally. 20-metre range.
• 1 x Flashing light with an incorporated antenna.
• 2 x BFT Mitto2 B RCB Remote Control.
• 1 x Push Button.
• 2 x Fixing Bracket.
