BENINCA BILL 50

BENINCA Swing Gate Motor in Dubai, Sharjah, Abudhabi, and all over UAE.

BENINCA BILL 50

Beninca Bill50m Swing Gate motor kit up to 4 meters in Dubai UAE.

• 230 Vac Up to 4 m per door leaf.
• Irreversible 230 Vac electromechanical geared motor.
• Neat design and size, particularly suited to forged iron gates.
• Easy and quick to install due to compact size and installation geometry.
• The worm is protected by a scraper ring and stainless steel stem.
• Suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents.
• Easy access release from above.
• Available in right or left version.
• Beninca Bill50m:
• BILL is the ideal motor gear to install for wrought-iron gates up to 4m.

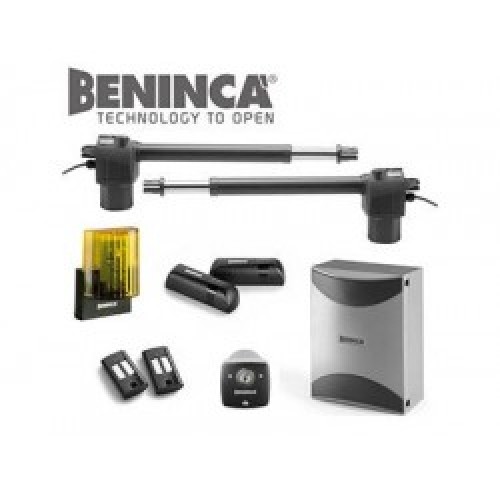

Beninca Bill50m contains:

• 2 x BILL50m 230 Vac operator.
• 1 x HEADY 230 Vac control unit.
• 1 x LAMPI.LED 230 Vac LED flashing light.
• 1 x PUPILLA.R Pair of fixed photocells PUPILLA.R.
• 2 x To go Remote control.
• 2 x Fixing Bracket.
• 1 x Exit Push Button.
• 2 x Manual release keys.

Technical Data:

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 1.1 A
• Maximum thrust: 2800 N
• Opening time: 21"
• Standard stroke: 500 mm
• Max stroke: 520 mm
• Duty cycle: 30%
• Protection level: IP54
• Built-in control unit: no
• Encoder: no
• Operating temperature : -20°C /+50°C
• Lubrication: GREASE
• Leaf max dimension: 4 m
• Weight: 6.9 kg
• Kit weight 16.2 kg.
