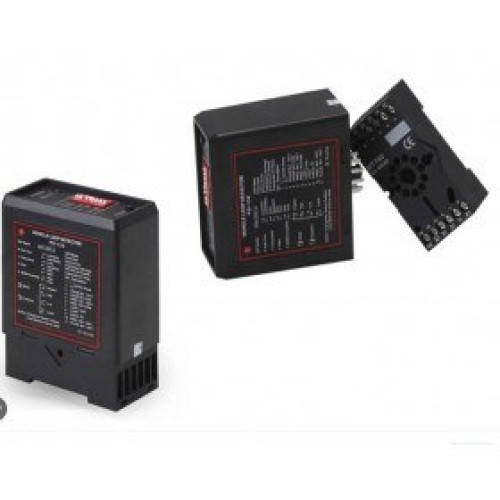

PD-232 LOOP DETECTOR
PD-232 LOOP DETECTOR
PD 232 Vehicle Loop Detector in
PD-232 LOOP DETECTOR
PD 232 Vehicle Loop Detector in Dubai, Sharjah, Abudhabi, and all over UAE.
- Model No: PD-232
- PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,
Technical Data:
- Supply voltage： 230V AC,
- Voltage tolerance AC: +10% / -15%
- Voltage tolerance DC: ±15%
- Power Consumption: 4.5VA
- Output relays: 240V/5A
- Operating temperature: -20°C to +65°C
- Storage temperature: -40°C to +85°C
- Frequency range: 20 kHz to 170 kHz
- Reaction time: 10ms
- Signal holding time: Unlimited/limited when the loop is permanently covered 10 minutes
- Sensitivity: Adjustable in 4 increments
- Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.
- Ideal is 100μH to 300μH
- Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter.
- Size of Housing: 78x40x108 mm (L x W x H)
- Model No: PD-232
- PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,
Technical Data:
- Supply voltage： 230V AC,
- Voltage tolerance AC: +10% / -15%
- Voltage tolerance DC: ±15%
- Power Consumption: 4.5VA
- Output relays: 240V/5A
- Operating temperature: -20°C to +65°C
- Storage temperature: -40°C to +85°C
- Frequency range: 20 kHz to 170 kHz
- Reaction time: 10ms
- Signal holding time: Unlimited/limited when the loop is permanently covered 10 minutes
- Sensitivity: Adjustable in 4 increments
- Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.
- Ideal is 100μH to 300μH
- Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter.
- Size of Housing: 78x40x108 mm (L x W x H)
PD-232 LOOP DETECTOR in Dubai, Sharjah & Ajman
GateAutomation.ae supplies and supports PD-232 LOOP DETECTOR for gate automation accessory applications in villas, warehouses, buildings, parking areas and commercial facilities across the UAE.
- Supply, installation, repair and maintenance support available
- Site visit and quotation available for Dubai, Sharjah and Ajman
- Support for gate motors, parking barriers, remotes, sensors, access control, CCTV and intercom systems
Service areas: Dubai, Sharjah, Ajman, Abu Dhabi and other UAE locations. Contact us on WhatsApp for price and availability.
Supply, Installation & Maintenance Support in UAE
We can assist with product supply, installation, repair and maintenance support for this item across Dubai, Sharjah, Ajman and other UAE locations. Contact us on WhatsApp for compatibility, availability and site visit guidance.
