CAME BK 1800 KG in Dubai

Supply, installation, repair and maintenance in UAE

CAME BK 1800 KG

CAME BK 1800 KG

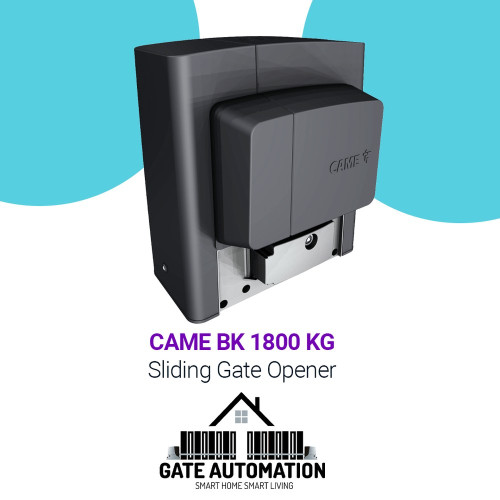

CAME BK 1800 Sliding Gate Motor up to 1800 kg in Dubai, Sharjah, Abudhabi, and all over UAE.
BK Solution for large sliding gates Up to 1800 kg.
MAIN FEATURES:

• Available with module 4 or 6 pinion.
• Ready for installation of magnetic limit switches.
• Control board with terminal blocks, display, and storage for up to 250 users.
• Self-diagnosing safety devices.
• The safety inputs can be configured to directly control the 8k2Ω resistive sensitive-safety edges.
• Max. length of leaf 20 m.
• Max. weight of leaf 1800 kg.
• Pinion module 4.

Came BK 1800 Kg Kit Included:

• 1 x Came BK 1800 Sliding Gate Motor.
• 1 x Integrated control unit.
• 2 x Remote control.
• 1 x Pair of Bluebus Photocells.
• 1 x Remote receiver.
• 1 x Blinker Light.
• 1 x 4m Nylon Rack.
• 1 x Push Button.

Technical Data:
Motor power supply: 230V.
Leaf maximum width: 9m.
Leaf maximum weight: 1800 kg.
Motor type: electromechanical.
Power Supply: 230/230 V.
Current draw: 4,2 A.
Max Power: 480 W.
Duty cycle: 50%.
Traction force: 1150 N.
Motor thermal protection: 150°C.
Speed (m/min): 10,5 m/min.
Operating temperature:  -20° + 50°C.
Protection rating: IP 54.
Self-locking: yes.
Limit switches for opening: yes.
Limit switches for closing: yes.
